Buckling-Restrained Braced Frame Beam-Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

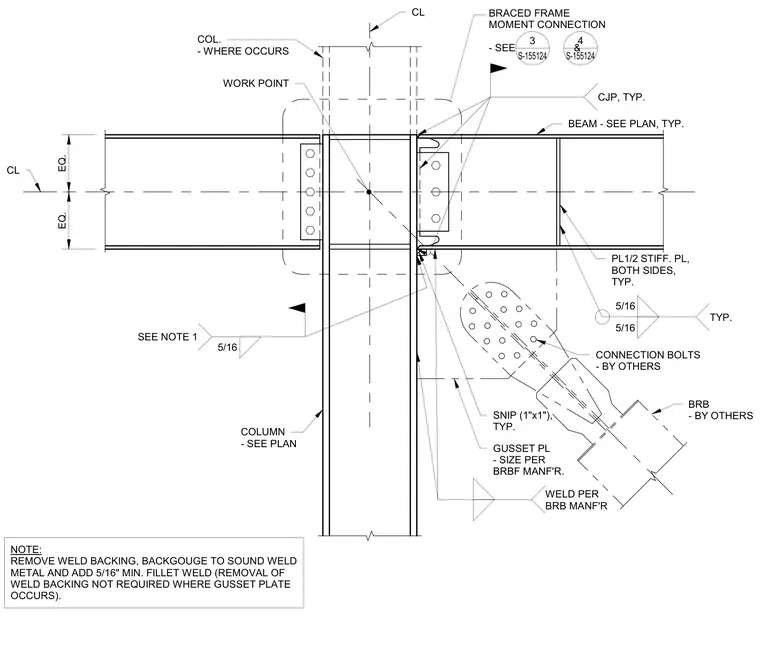

A structural steel beam frames into a column with connection bolts and complete joint penetration welds at the flange connections. One-half-inch thick stiffener plates are welded to both sides of the web. A gusset plate is attached to the column and beam intersection to receive the buckling-restrained brace, sized per the manufacturer. Five-sixteenth inch fillet welds are specified at typical joints with complete joint penetration welds at the moment connections. A note requires removing the weld backing, backgouging to sound weld metal, and adding a five-sixteenth inch minimum fillet weld where indicated.
