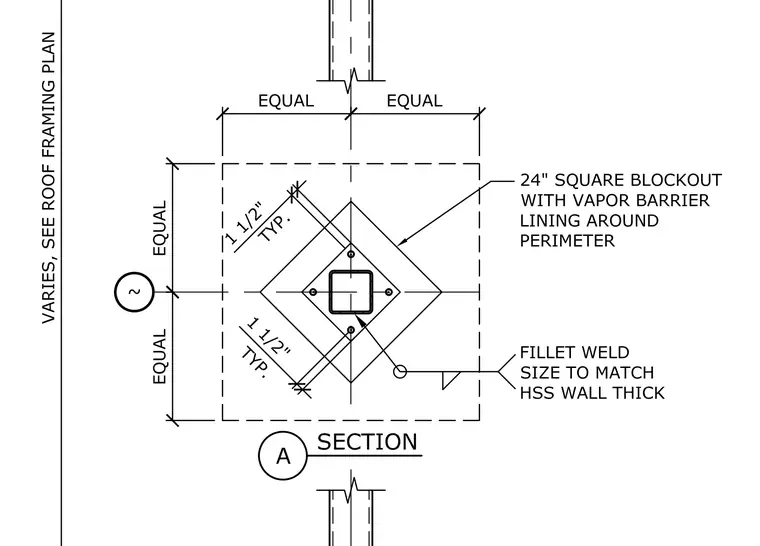

A hollow structural section column is centered within a 24-inch square blockout that features a vapor barrier lining around its perimeter. The base connection includes a fillet weld with a size matching the hollow structural section wall thickness. Equal spacing dimensions of 1 1/2 inches typical are set out from the column profile to the inner square boundary.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
