Where the spacing of multiple slab openings is less than three times the opening diameter, effective opening outlines dictate specific reinforcement requirements. Each opening configuration requires one number 5 top and bottom added trim bar placed all around the effective opening. These trim bars must extend one foot six inches beyond the effective opening on each side. Diagonal bars are not required for these closely spaced conditions.

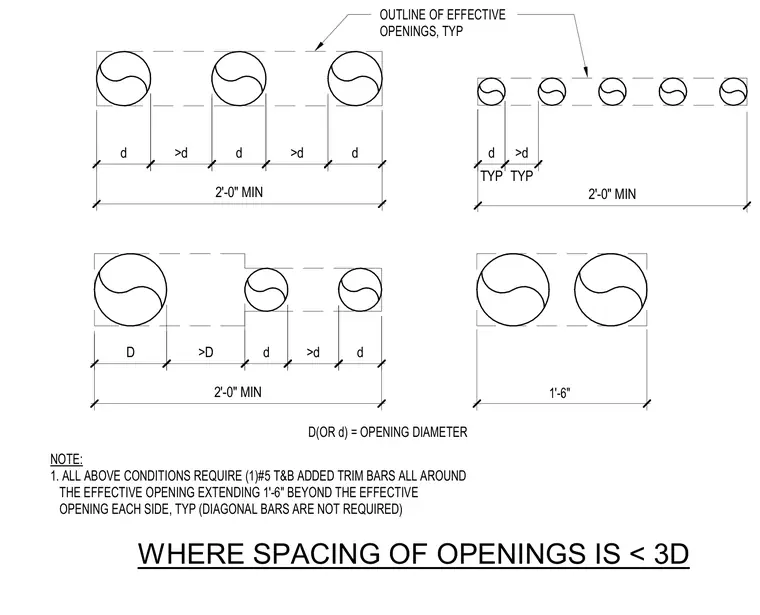

WHERE SPACING OF OPENINGS IS < 3D OUTLINE OF EFFECTIVE OPENINGS, TYP NOTE: 1. ALL ABOVE CONDITIONS REQUIRE (1)#5 T&B ADDED TRIM BARS ALL AROUND THE EFFECTIVE OPENING EXTENDING 1'-6" BEYOND THE EFFECTIVE OPENING EACH SIDE, TYP (DIAGONAL BARS ARE NOT REQUIRED) D(OR d) = OPENING DIAMETER d d >d >d d 2'-0" MIN TYP d TYP >d 2'-0" MIN D >D d >d d 2'-0" MIN . 1'-6"
