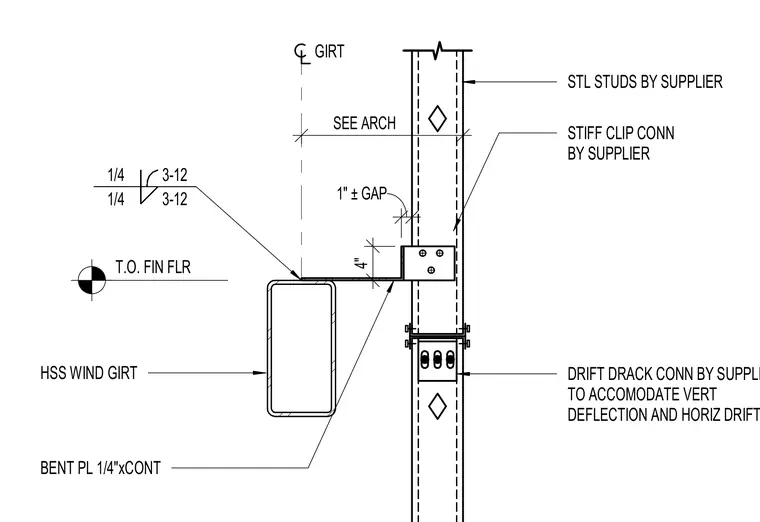

A hollow structural section wind girt connects to steel studs via a supplier-provided stiffened clip angle and a continuous 1/4-inch bent plate. The assembly features a one-inch plus-or-minus gap between the girt and framing to accommodate vertical deflection and horizontal drift. The supplier-provided drift connection accommodates differential movement while securing the girt to the stud wall. A continuous fillet weld secures the bent plate to the girt as indicated by standard welding symbols.
1/4 1/4 3-12 3-12 T.O. FIN FLR HSS WIND GIRT DRIFT DRACK CONN BY SUPPLIER TO ACCOMODATE VERT DEFLECTION AND HORIZ DRIFT STIFF CLIP CONN BY SUPPLIER STL STUDS BY SUPPLIER 1" ± GAP 4" BENT PL 1/4"xCONT GIRT SEE ARCH
