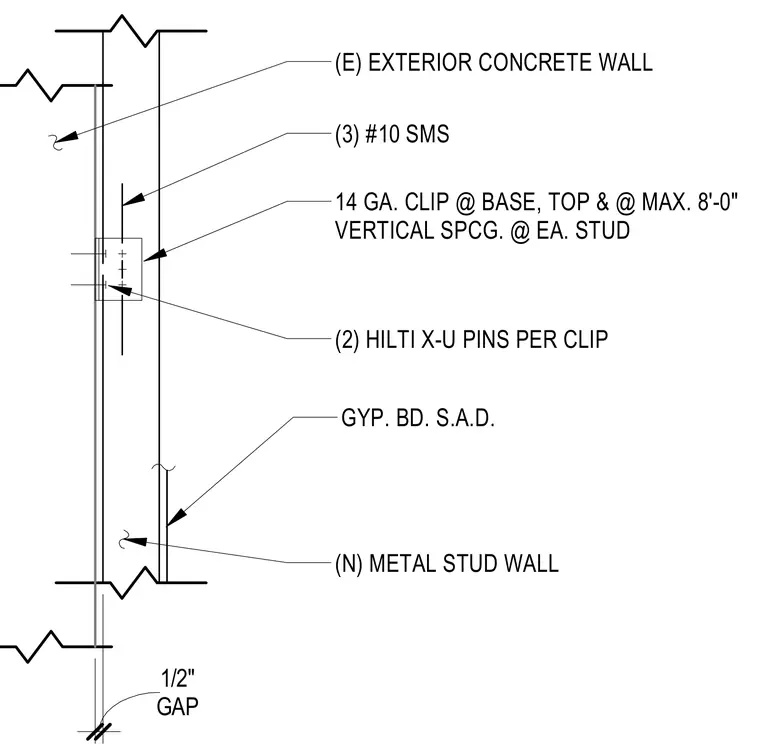

A new metal stud wall is installed adjacent to an existing exterior concrete wall with a one-half inch gap maintained between them. The metal studs are secured at the base, top, and at a maximum of eight-foot vertical spacing using fourteen-gauge clips. Each clip is fastened to the concrete wall with two Hilti X-U pins and attached to the stud using three number ten sheet metal screws. Gypsum board is applied to the interior side of the metal stud wall.
(E) EXTERIOR CONCRETE WALL (3) #10 SMS 14 GA. CLIP @ BASE, TOP & @ MAX. 8'-0" VERTICAL SPCG. @ EA. STUD (2) HILTI X-U PINS PER CLIP GYP. BD. S.A.D. (N) METAL STUD WALL GAP 1/2"
