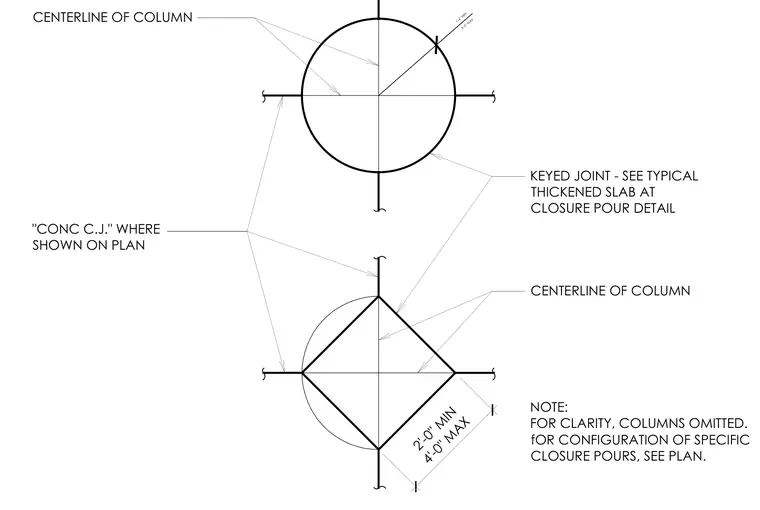

This plan detail establishes the layout for concrete closure pours and construction joints around circular and square concrete columns. Keyed construction joints are provided per the typical thickened slab detail at closure pours. Dimension ranges of one foot six inches to three feet and two feet to four feet dictate the allowable strip widths. Columns are omitted for clarity, with exact configurations and concrete construction joint placements referenced to the architectural or structural floor plans.
CENTERLINE OF COLUMN "CONC C.J." WHERE SHOWN ON PLAN KEYED JOINT - SEE TYPICAL THICKENED SLAB AT CLOSURE POUR DETAIL 1'-6" MIN 3'-0" MAX NOTE: FOR CLARITY, COLUMNS OMITTED. fOR CONFIGURATION OF SPECIFIC CLOSURE POURS, SEE PLAN. CENTERLINE OF COLUMN 2'-0" MIN 4'-0" MAX
