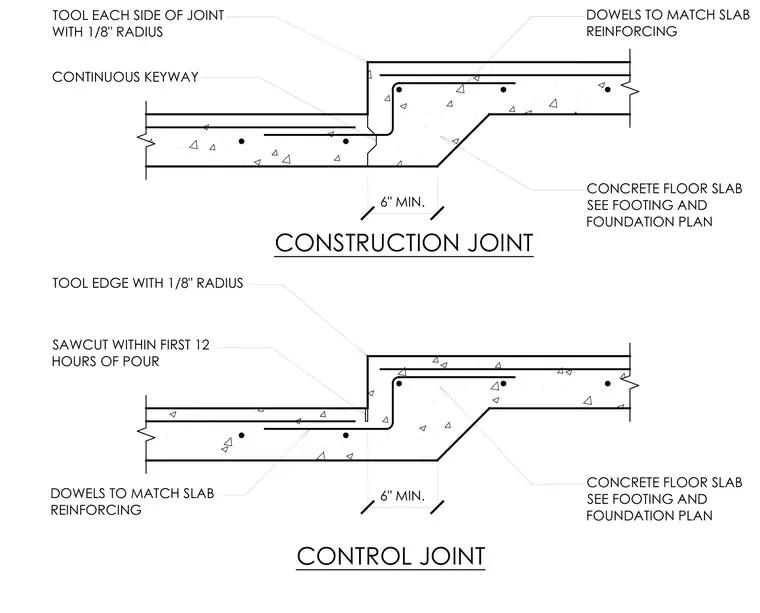

Concrete floor slab transitions incorporate a depressed slab edge with continuous reinforcing dowels matched to the slab size. The construction joint features a continuous keyway and a tooled edge with a one-eighth inch radius on each side. The control joint includes a sawcut executed within the first twelve hours of the pour and a tooled edge with a one-eighth inch radius. Both conditions maintain a minimum six-inch dimension at the step transition.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
