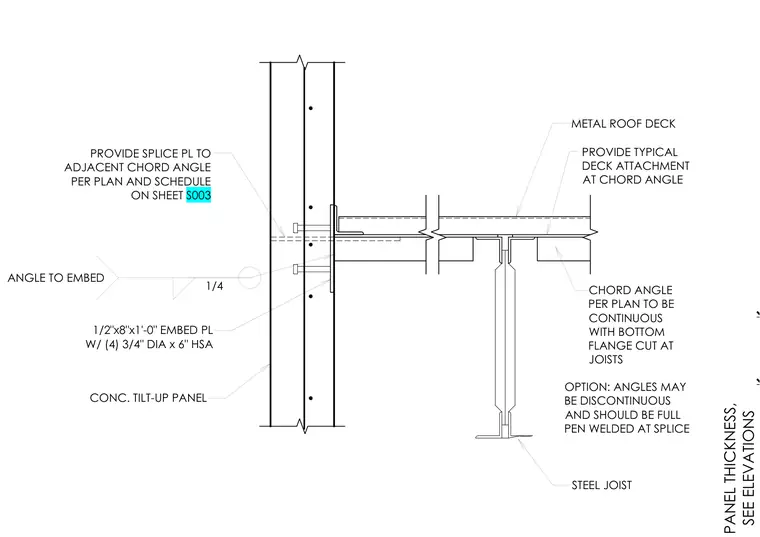

A steel joist bears near a concrete tilt-up panel with a continuous chord angle at the bottom flange, which can alternatively be discontinuous and full penetration welded at splices. A 1/2-inch by 8-inch by 1-foot-0-inch embed plate with four 3/4-inch diameter by 6-inch heavy stud anchors secures to the tilt-up panel. A splice plate connects the chord angle to the adjacent chord angle per plan and schedule. A one-quarter-inch fillet weld secures the angle to the embed plate.
METAL ROOF DECK PROVIDE TYPICAL DECK ATTACHMENT AT CHORD ANGLE CHORD ANGLE PER PLAN TO BE CONTINUOUS WITH BOTTOM FLANGE CUT AT JOISTS STEEL JOIST OPTION: ANGLES MAY BE DISCONTINUOUS AND SHOULD BE FULL PEN WELDED AT SPLICE 1/4 ANGLE TO EMBED PROVIDE SPLICE PL TO ADJACENT CHORD ANGLE PER PLAN AND SCHEDULE ON SHEET S003 1/2"x8"x1'-0" EMBED PL W/ (4) 3/4" DIA x 6" HSA CONC. TILT-UP PANEL PANEL THICKNESS, SEE ELEVATIONS T \ □ X . 4 L
