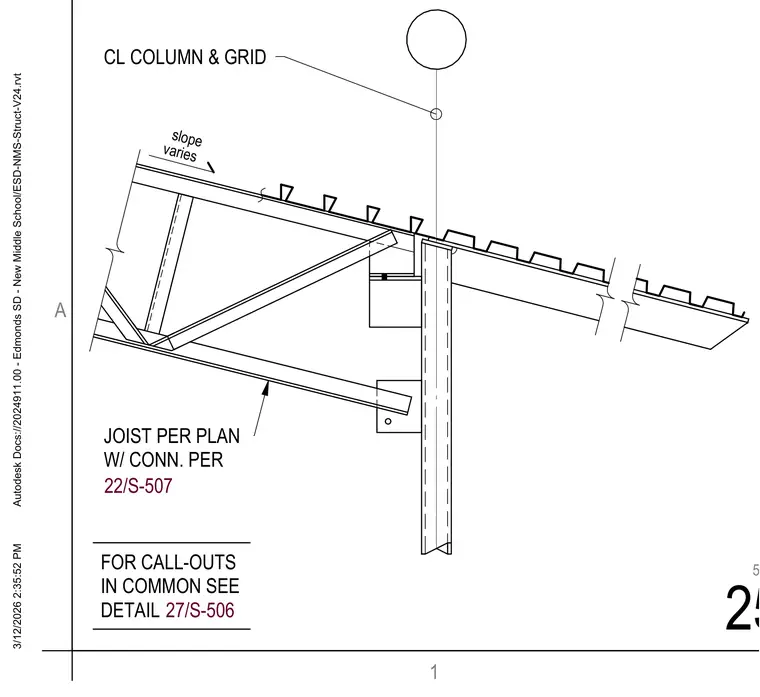

An open web steel joist with varying slope bears upon a structural steel column at the centerline and grid intersection. The joist connects per plan with connections detailed on sheet S-507. Common callouts refer to detail 27 on sheet S-506.
CL COLUMN & GRID varies slope JOIST PER PLAN W/ CONN. PER FOR CALL-OUTS IN COMMON SEE DETAIL 27/S-506 22/S-507 1 A 3/12/2026 2:35:52 PM Autodesk Docs://2024911.00 - Edmonds SD - New Middle School/ESD-NMS-Struct-V24.rvt 25 5824
