Diaphragm Expansion Tank Detail

Elements

About this detail

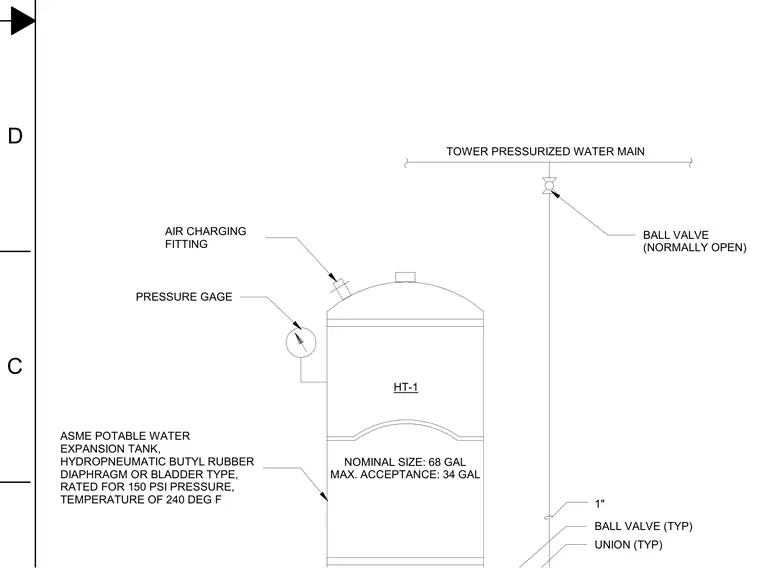

An ASME potable water hydropneumatic expansion tank with a butyl rubber diaphragm or bladder is connected to a tower pressurized water main. The tank is rated for 150 psi pressure and a temperature of 240 degrees Fahrenheit, with a nominal size of 68 gallons and a maximum acceptance of 34 gallons. The piping assembly includes a 1-inch connection with typical ball valves, typical unions, a pressure gage, and a 1-inch air charging fitting. A normally open ball valve is installed on the tower pressurized water main.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
