An opening in a metal deck floor assembly is reinforced with structural steel angles fastened to each low flute on each side of the opening. The assembly uses L3x3x3/16 angles secured with half-inch diameter expansion bolts having three and a half inches of embedment. Two low flutes extend past the opening on each side. Reinforcing at cores is provided to a maximum of eighteen inches.

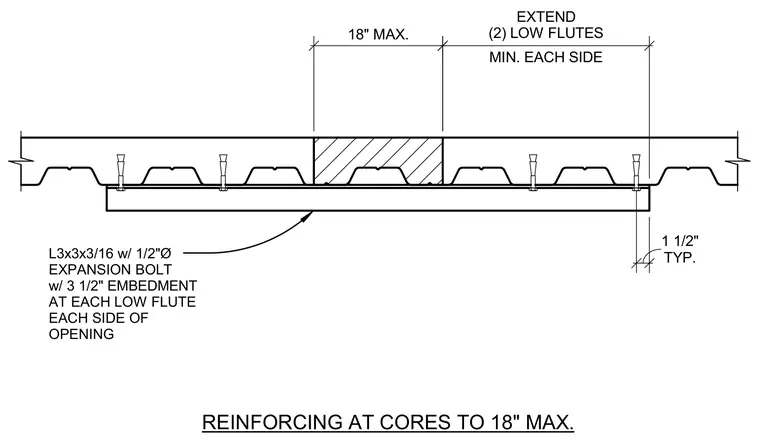

REINFORCING AT CORES TO 18" MAX. 18" MAX. MIN. EACH SIDE EXTEND (2) LOW FLUTES TYP. 1 1/2" L3x3x3/16 w/ 1/2"Ø EXPANSION BOLT w/ 3 1/2" EMBEDMENT AT EACH LOW FLUTE EACH SIDE OF OPENING
