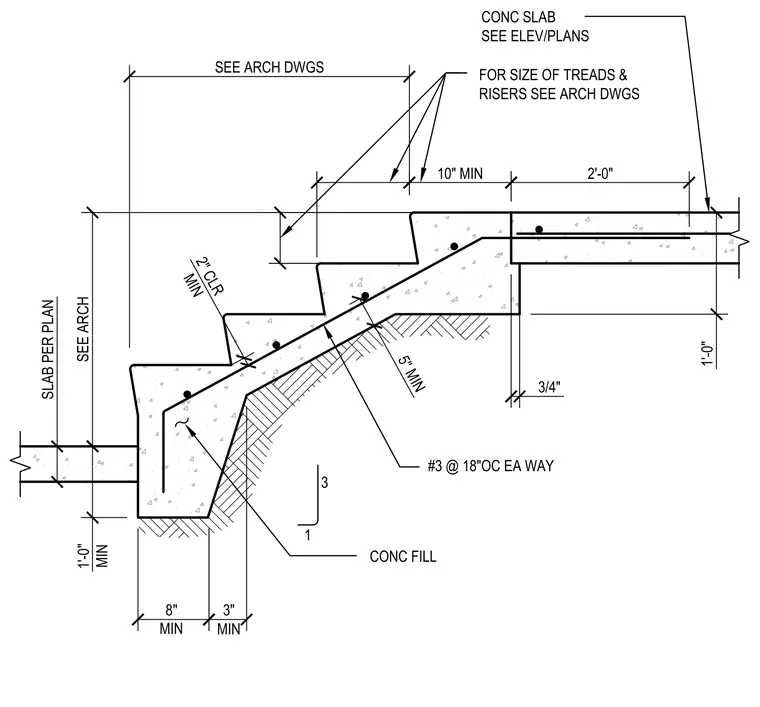

A concrete stair on grade bears on a foundation with a minimum eight-inch thickness and three-inch footing projection, supported on compacted subgrade. The stair slab features number three reinforcing bars at eighteen inches on center each way with a two-inch minimum clear cover, supported by concrete fill over undisturbed soil. Tread and riser dimensions are coordinated per architectural drawings, transitioning to a concrete slab with thickness determined per plan.
5" MIN SEE ARCH DWGS SEE ARCH SLAB PER PLAN 1'-0" MIN 8" MIN 3" MIN 1 3 3/4" #3 @ 18"OC EA WAY 10" MIN 2'-0" 1'-0" FOR SIZE OF TREADS & RISERS SEE ARCH DWGS CONC FILL CONC SLAB SEE ELEV/PLANS 2" CLR MIN
