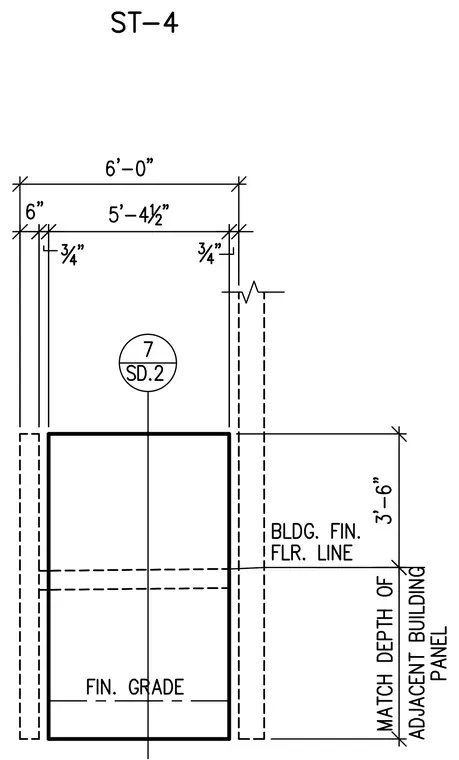

This structural plan detail shows an exterior stair assembly with an overall width of six feet and a clear width of five feet four and one-half inches between boundaries. Dimensions indicate a six-inch clearance on one side and a three-quarter-inch offset on both edges. The stair aligns with the building finished floor line and matches the depth of the adjacent building panel.
