Structural · S-M94V8

Steel Deck/Slab Reinforcing Diagrams

Materials

Reinforced Concrete Steel

Elements

Beams Floors / Slabs Decks Reinforcing

Connections

Welded Connection Deck Attachment

About this detail

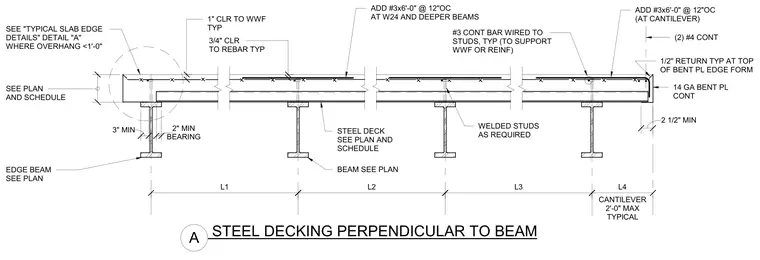

A concrete slab is poured over steel decking oriented perpendicular to supporting steel beams. Welded studs are attached to the top flange of each beam as required for composite action. Reinforcing includes a continuous number three bar wired to the studs to support welded wire fabric or reinforcement, additional number three bars at twelve inches on center over wide flange beams twenty-four inches and deeper, and additional number three bars at twelve inches on center at cantilevers. A fourteen gauge continuous bent plate edge form with a one-half inch return at the top retains the concrete at the slab edge, reinforced with two continuous number four bars for cantilevers up to two feet maximum. Minimum clearances include one inch to welded wire fabric, three-quarters of an inch to rebar, two inches minimum bearing on the edge beam, and a three inch minimum edge distance.
