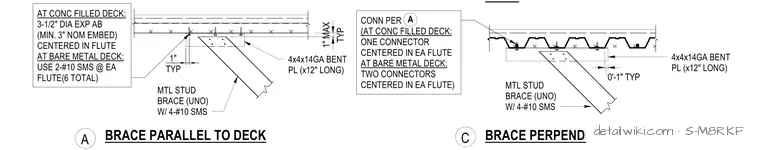

The drawing illustrates connection details for metal stud bracing oriented either parallel or perpendicular to a metal deck or concrete-filled deck. It includes bent plates, expansion anchors or self-tapping sheet metal screws, and specific fastener configurations for each deck type. Notes specify anchor and connector requirements centered in the deck flutes.
Text on the drawing
TYP 1" MTL STUD BRACE (UNO) W/ 4-#10 SMS AT CONC FILLED DECK: 3-1/2" DIA EXP AB (MIN. 3" NOM EMBED) CENTERED IN FLUTE AT BARE METAL DECK: USE 2-#10 SMS @ EA FLUTE(6 TOTAL) 4x4x14GA BENT PL (x12" LONG) 0'-1" TYP MTL STUD BRACE (UNO) W/ 4-#10 SMS BEAM BRACE PERPENDICULAR TO DECK BRACE PARALLEL TO DECK CONN PER (AT CONC FILLED DECK: ONE CONNECTOR CENTERED IN EA FLUTE AT BARE METAL DECK: TWO CONNECTORS CENTERED IN EA FLUTE) 4x4x14GA BENT PL (x12" LONG) A C TYP 1" MAX A
