Structural · S-M8N2P

Deck Span Perpendicular or Skewed to Wall

Materials

Reinforced Concrete Steel Timber / Wood Glass / Glazing

Elements

Walls Floors / Slabs Decks Entrances Site / Paving Reinforcing

Connections

Welded Connection Shear Stud / Composite Rebar Splice / Development Deck Attachment

About this detail

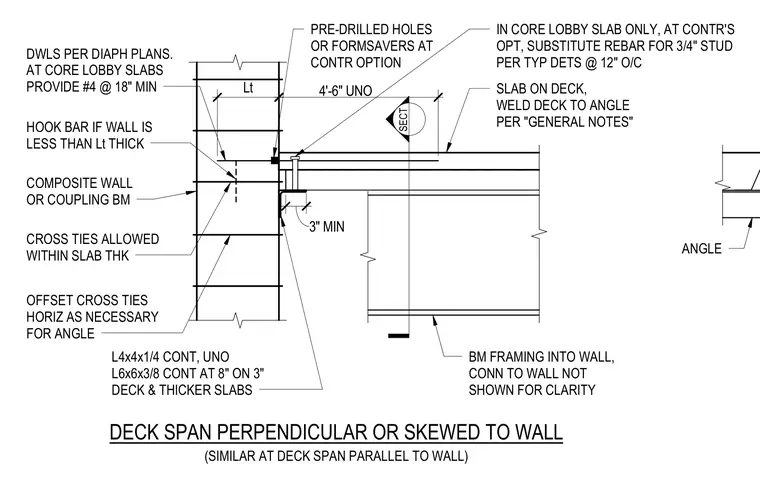

A concrete slab on metal deck frames perpendicularly or skewed into a reinforced concrete wall or coupling beam. A continuous support angle, sized L4x4x1/4 unless otherwise noted or L6x6x3/8 for three-inch and thicker slabs, is anchored to the wall. The metal deck is welded to the continuous angle, and shear studs or optional substitute rebar anchors the slab at twelve inches on center. Dowels per diaphragm plans and horizontal cross ties are integrated within the slab thickness, with hooks provided if the wall is less than the specified thickness Lt.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
