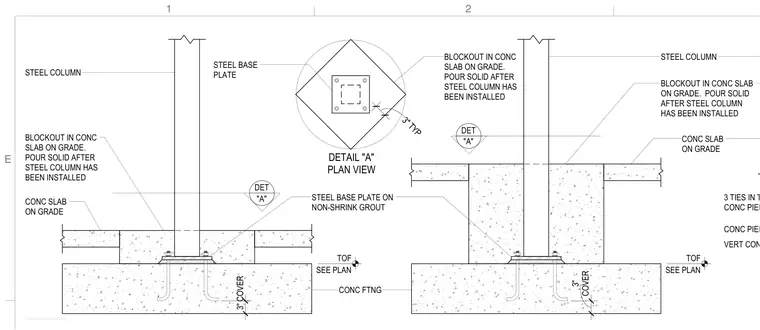

A structural steel column bears on a steel base plate set on non-shrink grout atop a concrete footing and concrete pier. Anchor bolts embedded in the footing secure the base plate connection. A blockout in the concrete slab on grade surrounds the base, poured solid after the steel column has been installed. The concrete pier features vertical reinforcement and three ties within the top five inches.
Ftng-Stl-Col-to-Ftng STEEL COLUMN CONC SLAB ON GRADE BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED STEEL BASE PLATE ON NON-SHRINK GROUT STEEL COLUMN CONC SLAB ON GRADE BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED CONC PIER CONC FTNG 3 TIES IN TOP 5" OF CONC PIER VERT CONC PIER REINF DETAIL "A" PLAN VIEW BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED STEEL BASE PLATE 3" TYP "A" DET "A" DET 3" COVER TOF SEE PLAN TOF SEE PLAN COVER 3" E 1 2
