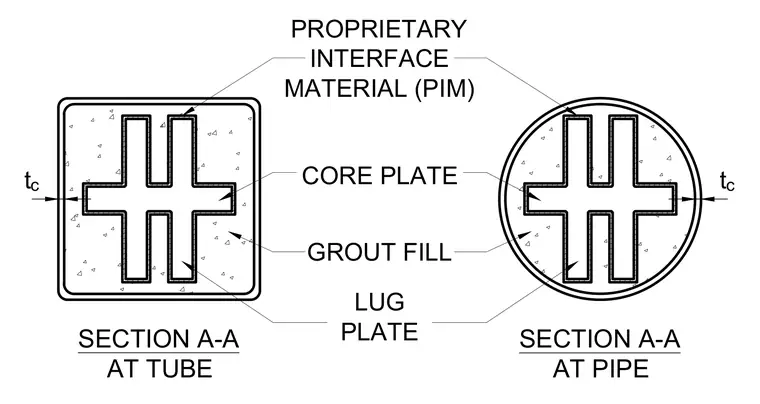

A core plate connects to lug plates surrounded by grout fill and a proprietary interface material inside structural steel tube and pipe sections. A clearance dimension tc marks the gap thickness at the side of the hollow structural section. The assembly integrates structural steel plates with cementitious grout inside tubular profiles.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c t c GROUT FILL CORE PLATE SECTION A-A AT TUBE SECTION A-A AT PIPE
