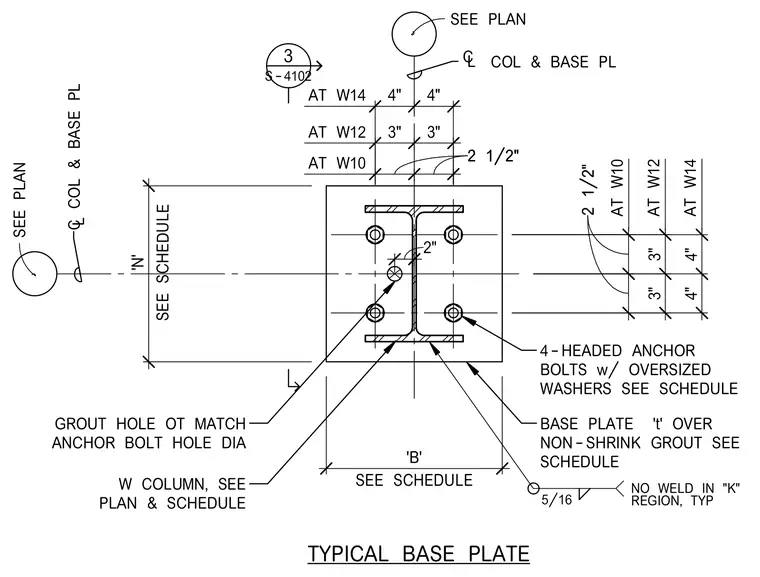

A wide-flange steel column is anchored to a concrete foundation by four headed anchor bolts with oversized washers per schedule. The steel base plate rests over a layer of non-shrink grout and features a centered grout hole matching the anchor bolt hole diameter. Edge distances and bolt spacings vary depending on whether the column is a W10, W12, or W14 section. Fillet welds connect the column flange to the base plate while remaining left unwelded in the web k-region.
SEE PLAN C L SEE PLAN C L 4-HEADED ANCHOR BOLTS w/ OVERSIZED WASHERS SEE SCHEDULE W COLUMN, SEE PLAN & SCHEDULE BASE PLATE 't' OVER NON-SHRINK GROUT SEE SCHEDULE NO WELD IN "K" 5/16 REGION, TYP TYPICAL BASE PLATE COL & BASE PL COL & BASE PL 2 1/2" 2 1/2" 3" 3" 2 1/2" 2 1/2" 3" 3" 4" 4" SEE SCHEDULE 'N' SEE SCHEDULE 'B' AT W14 AT W10 AT W12 AT W10 AT W14 AT W12 2" GROUT HOLE OT MATCH ANCHOR BOLT HOLE DIA 3 S-4102 4" 4"
