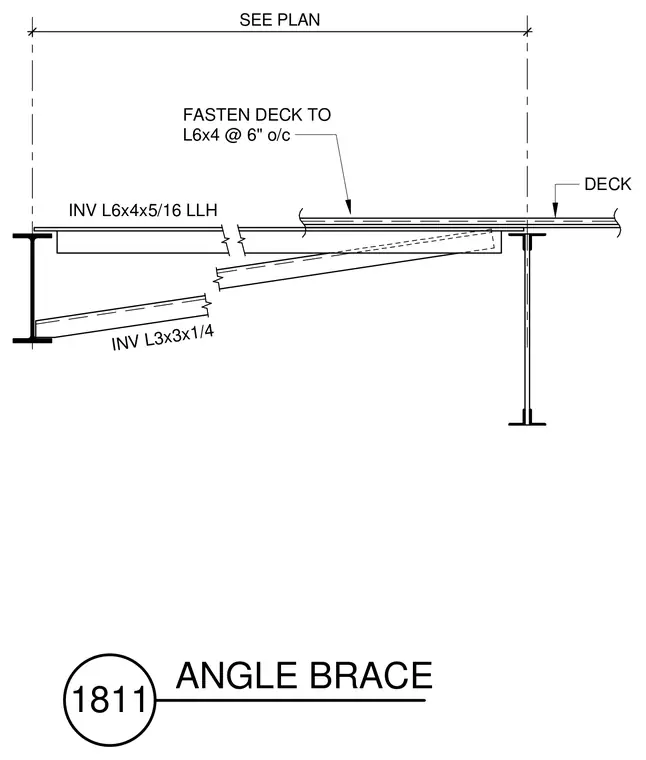

An inverted L3x3x1/4 angle brace and an inverted L6x4x5/16 long-leg-horizontal angle provide lateral support beneath a metal deck. The metal deck fastens to the L6x4 angle at six inches on center, with dimensions sized per plan. Structural steel framing members support the assembly.
DECK INV L3x3x1/4 INV L6x4x5/16 LLH FASTEN DECK TO L6x4 @ 6" o/c SEE PLAN 1811 ANGLE BRACE
