A structural steel davit socket pedestal bears onto a supporting steel beam intersection, reinforced with three-eighths-inch stiffener plates on each side. Half-inch by four-inch plates are secured to the flanges and webs with quarter-inch fillet welds. The davit base is welded to the beam flanges with three-eighths-inch welds. Additional three-eighths-inch stiffener plates are tied into the beam assembly with typical quarter-inch fillet welds.

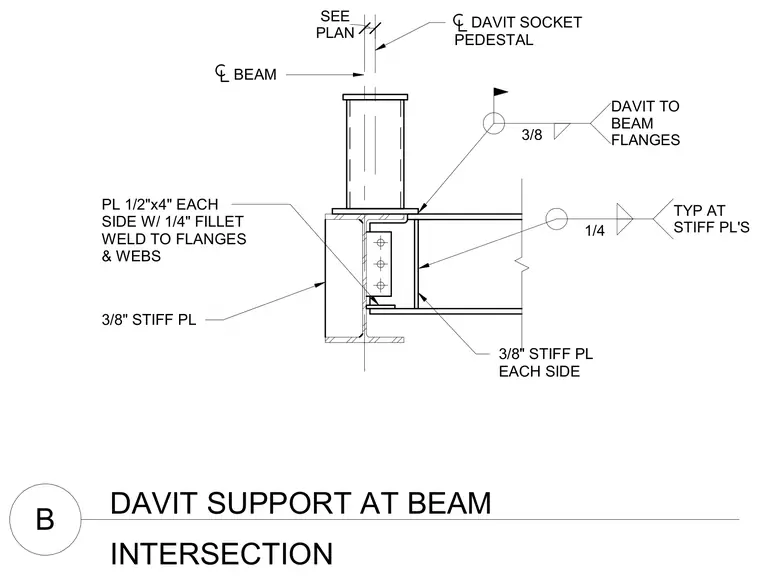

DAVIT SUPPORT AT BEAM B INTERSECTION 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S
