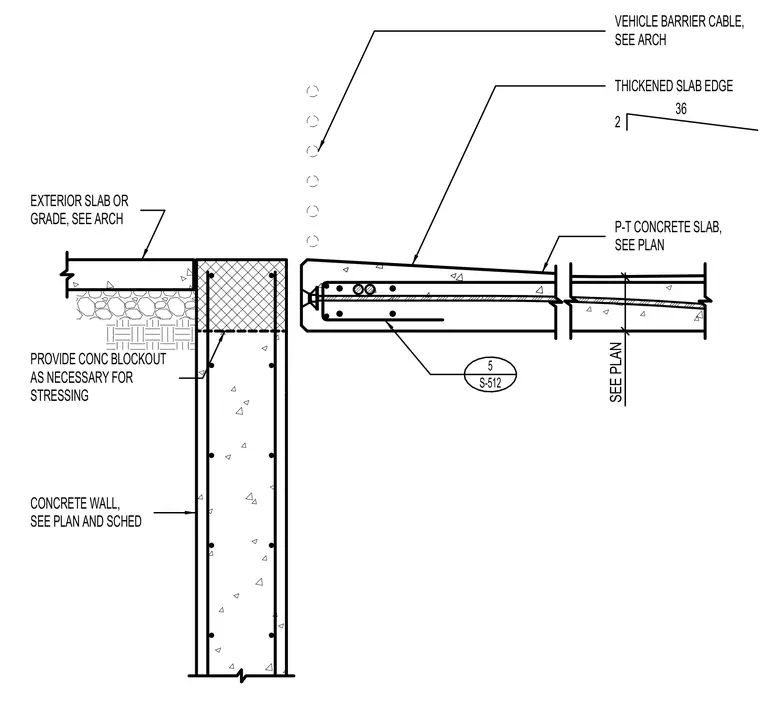

A post-tensioned concrete slab intersects a concrete wall with a thickened slab edge. The post-tensioned concrete slab features integrated vehicle barrier cables coordinated per the architectural drawings. A concrete blockout is provided at the wall as necessary for stressing operations. The vertical concrete wall is detailed per the structural plan and schedule, adjacent to an exterior slab on grade.
5 S-512 P-T CONCRETE SLAB, SEE PLAN VEHICLE BARRIER CABLE, SEE ARCH THICKENED SLAB EDGE 36 2 CONCRETE WALL, SEE PLAN AND SCHED EXTERIOR SLAB OR GRADE, SEE ARCH PROVIDE CONC BLOCKOUT AS NECESSARY FOR STRESSING SEE PLAN
