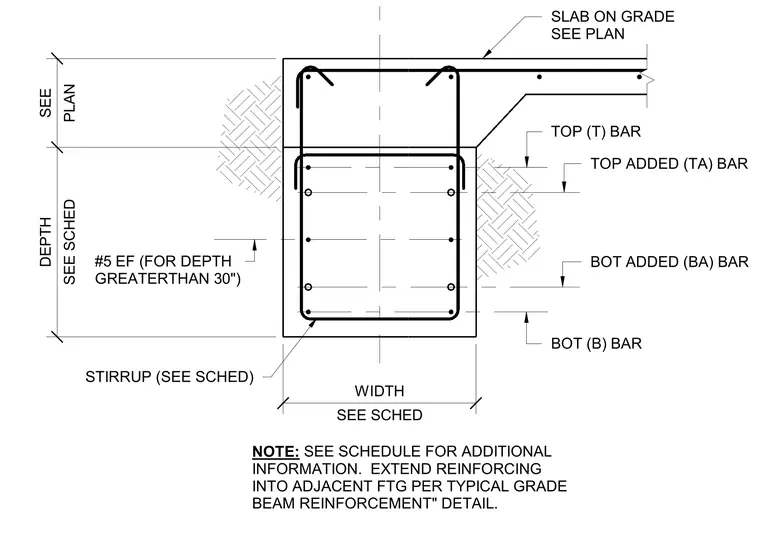

A concrete grade beam with an integrated slab on grade. The reinforcing layout includes top and bottom principal bars, top and bottom added bars, stirrups sized per schedule, and number five bars each face for depths greater than thirty inches. Width and depth dimensions are coordinated per the structural schedule. Reinforcing must extend into adjacent footings per typical grade beam reinforcement details.
STIRRUP (SEE SCHED) TOP (T) BAR BOT (B) BAR TOP ADDED (TA) BAR BOT ADDED (BA) BAR #5 EF (FOR DEPTH GREATERTHAN 30") SLAB ON GRADE SEE PLAN SEE SCHED WIDTH SEE SCHED DEPTH PLAN SEE NOTE: SEE SCHEDULE FOR ADDITIONAL INFORMATION. EXTEND REINFORCING INTO ADJACENT FTG PER TYPICAL GRADE BEAM REINFORCEMENT" DETAIL.
