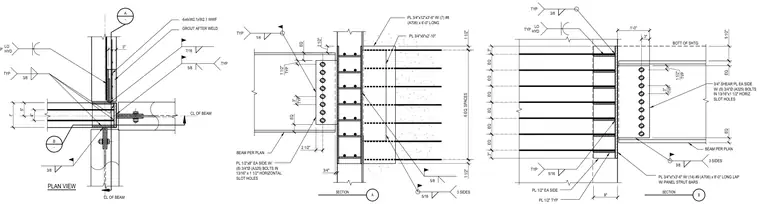

A structural strut connection joins a steel beam to a concrete element utilizing welded plates and bolted shear tabs. The beam connects using three-quarter-inch thick shear plates on each side secured by nine three-quarter-inch diameter A325 bolts in thirteen-sixteenths by one-and-a-half-inch horizontal slot holes. Additional half-inch plates and three-quarter-inch plates are welded with low-hydrogen electrodes using various fillet sizes including three-eighths, five-sixteenths, seven-sixteenths, and five-eighths inch welds on three sides. The concrete element is reinforced with embedded number eight and number nine A706 reinforcing bars running six to eight feet long, lapped with panel strut bars, and welded wire fabric is specified alongside post-weld grouting.
4" t" CL OF BEAM CL OF BEAM 6 EQ. SPACES 1 1/2" 1 1/2" PL 3/4"x9"x2'-10" PL 3/4"x12"x3'-6" W/ (7) #8 (A706) x 6'-0" LONG 5 1/2" 3" PL 3/4"xt"x3'-6" W/ (14) #9 (A706) x 8'-0" LONG LAP W/ PANEL STRUT BARS BEAM PER PLAN 9" 3" 3" PL 1/2" EA SIDE PL 1/2" TYP LO HYD TYP 1'-0" EQ 3/8 3 SIDES BOTT OF SHTG 3/8 TYP 5/16 TYP 3 SIDES 5/16 3" B - A - 5" 3/8 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 7/16 3/8 TYP LO HYD TYP A SECTION 5/8 5/8 EQ PLAN VIEW B SECTION 3/4" SHEAR PL EA SIDE W/ (9) 3/4"Ø (A325) BOLTS IN 13/16"x1 1/2" HORIZ SLOT HOLES 2 1/2" 3/4" 2 1/2" 1/4 TYP BEAM PER PLAN PL 1/2"x8" EA SIDE W/ (8) 3/4"Ø (A325) BOLTS IN 13/16" x 1 1/2" HORIZONTAL SLOT HOLES 3" TYP 1 1/2" TYP EQ 3" TYP 1 1/2" TYP EQ EQ TYP EQ EQ EQ EQ EQ
