An isolated opening in a non-composite metal deck is framed with an L3x3x3/16 angle sized to the width of the opening plus three feet, secured with a one-eighth-inch one spot weld in each flute. Metal deck manufacturer closure pieces seal the edge condition, and three-sixteenth-inch typical welds attach framing elements. Openings smaller than six inches by six inches require no framing, while multiple openings must maintain a twenty-inch minimum clearance between them. Maximum spacing for framing members is restricted to sixteen inches.

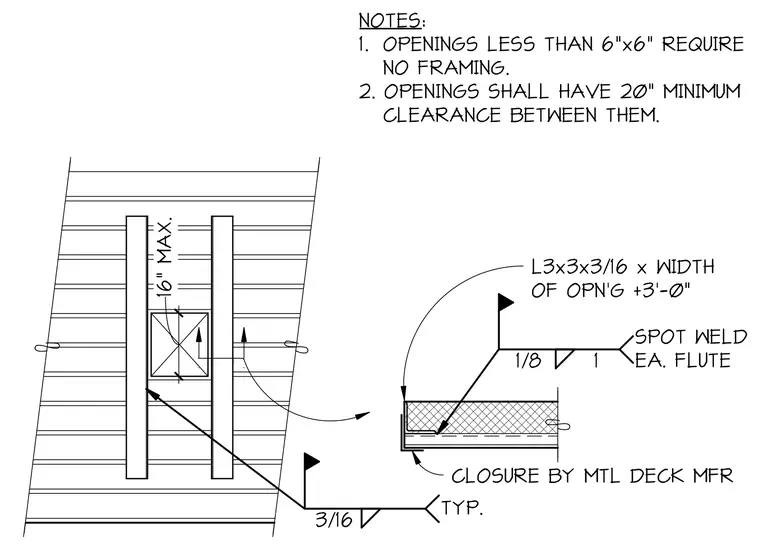

1/8 1 SPOT WELD EA. FLUTE NOTES: 1. OPENINGS LESS THAN 6"x6" REQUIRE NO FRAMING. 2. OPENINGS SHALL HAVE 20" MINIMUM CLEARANCE BETWEEN THEM. 3/16 TYP. 16" MAX. S D F dfg dfg CLOSURE BY MTL DECK MFR L3x3x3/16 x WIDTH OF OPN'G +3'-0"
