A steel column anchors to a concrete footing and foundation wall. A 6-inch steel track sits on a concrete slab on grade, secured with number ten tek screws at each stud and anchored with half-inch diameter anchor bolts at thirty-two inches on center with eight inches of minimum embedment. The eight-inch concrete wall contains two number four continuous top and bottom bars, with number four continuous bars at eighteen inches on center maximum, supported by a concrete footing with number four hooked dowels at eighteen inches on center with alternate bends. A tilt-up concrete panel opening features a seven-and-a-quarter-inch thick concrete tilt-up panel reinforced with number five bars at eighteen inches on center each way. An attachment angle measuring L 4x3x3/8 by four inches long connects to an embed plate measuring half-inch by six inches by twelve inches with two three-quarter-inch diameter by six-inch heavy stud anchors on each side of the panel. An embed angle measuring L 5 by three-and-a-half by five-sixteenths by five inches features two half-inch diameter by twenty-four-inch deformed bar anchors and one three-quarter-inch diameter by six-inch heavy stud anchor on each side of the panel, resting on one-and-a-half inches of non-shrink grout above a concrete footing. After erection of the panels and welding of connections, all steel plates and angles are coated with an eighth-inch minimum of bituminous cement.

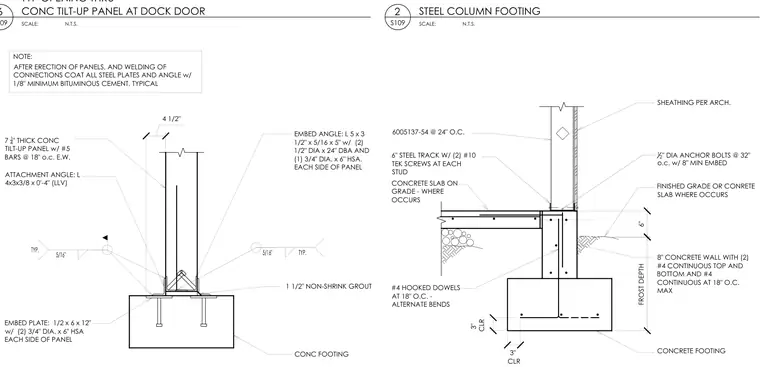

SCALE: 2 S109 STEEL COLUMN FOOTING N.T.S. SCALE: 6 S109 TYP OPENING THRU CONC TILT-UP PANEL AT DOCK DOOR N.T.S. AFTER ERECTION OF PANELS, AND WELDING OF CONNECTIONS COAT ALL STEEL PLATES AND ANGLE w/ 1/8" MINIMUM BITUMINOUS CEMENT. TYPICAL EMBED PLATE: 1/2 x 6 x 12" w/ (2) 3/4" DIA. x 6" HSA EACH SIDE OF PANEL ATTACHMENT ANGLE: L 4x3x3/8 x 0'-4" (LLV) 4 1/2" CONC FOOTING 1 1/2" NON-SHRINK GROUT EMBED ANGLE: L 5 x 3 1/2" x 5/16 x 5" w/ (2) 1/2" DIA x 24" DBA AND (1) 3/4" DIA. x 6" HSA. EACH SIDE OF PANEL NOTE: 7 1 4 " THICK CONC TILT-UP PANEL w/ #5 BARS @ 18" o.c. E.W. FINISHED GRADE OR CONRETE SLAB WHERE OCCURS 8" CONCRETE WALL WITH (2) #4 CONTINUOUS TOP AND BOTTOM AND #4 CONTINUOUS AT 18" O.C. MAX 3" CLR 3" CLR CONCRETE SLAB ON GRADE - WHERE OCCURS #4 HOOKED DOWELS AT 18" O.C. - ALTERNATE BENDS FROST DEPTH SHEATHING PER ARCH. 6" CONCRETE FOOTING 6005137-54 @ 24" O.C. 6" STEEL TRACK W/ (2) #10 TEK SCREWS AT EACH STUD 12 " DIA ANCHOR BOLTS @ 32" o.c. w/ 8" MIN EMBED
