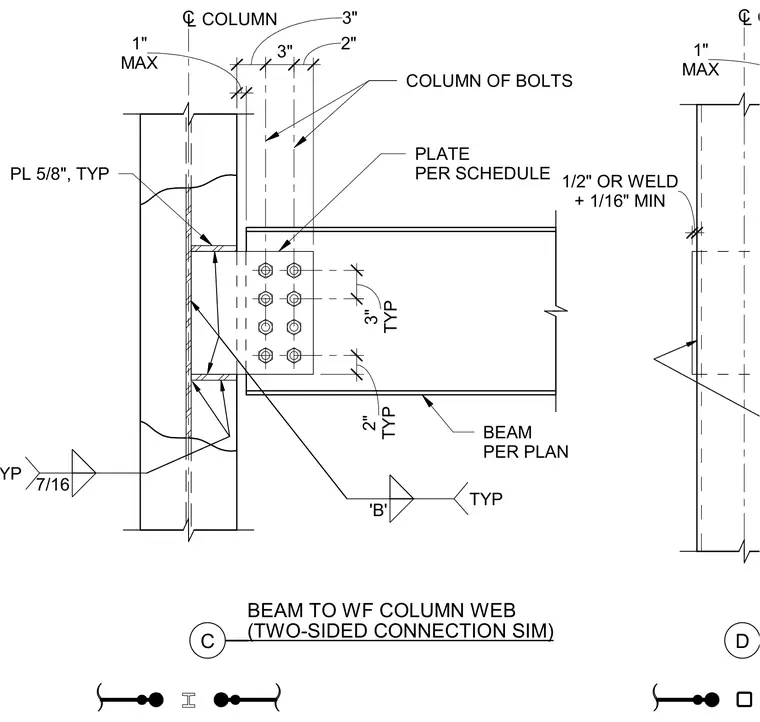

A two-sided beam connection frames into the web of a wide-flange column. A connection plate per schedule, measuring five-eighths inch thick typically, connects to the column web via seven-sixteenths inch fillet welds. The supported beam web bolts to the connection plate using a typical vertical column of bolts spaced at three inches on center, with two-inch edge distances typical. A one-inch maximum clearance is maintained between the beam end and the column face, and a one-half inch weld plus one-sixteenth inch minimum is specified for the plate connection. Dimensional callouts for two-sided framing symmetry are provided.
__ __ C (TWO-SIDED CONNECTION SIM) BEAM TO WF COLUMN WEB D 3" 3" 2" TYP 3" COLUMN OF BOLTS BEAM PER PLAN TYP 2" 'B' TYP PL 5/8", TYP 7/16 TYP C L COLUMN PLATE PER SCHEDULE C L COLUMN MAX 1" MAX 1" + 1/16" MIN 1/2" OR WELD
