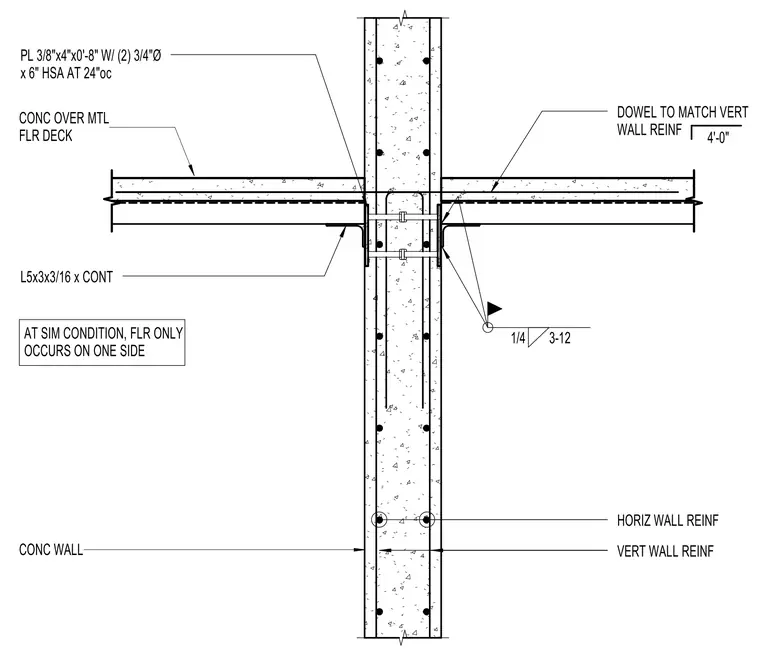

A concrete floor slab poured over a metal floor deck frames into a reinforced concrete wall supported by a continuous 5x3x3/16 inch structural steel angle. The concrete wall contains vertical and horizontal wall reinforcement along with dowels matching the vertical wall reinforcement extended four feet into the assembly. Three-eighths by four by eight-inch steel plates anchored by two three-quarter inch diameter by six-inch heavy duty sleeve anchors at twenty-four inches on center secure the embedded connections. At similar conditions where the floor occurs on only one side, a one-quarter inch fillet weld spaced at three to twelve inches is applied.
CONC WALL CONC OVER MTL FLR DECK HORIZ WALL REINF VERT WALL REINF DOWEL TO MATCH VERT WALL REINF 4'-0" PL 3/8"x4"x0'-8" W/ (2) 3/4"Ø x 6" HSA AT 24"oc L5x3x3/16 x CONT 1/4 3-12 AT SIM CONDITION, FLR ONLY OCCURS ON ONE SIDE
