Structural · S-M7DCS

Braced Frame Base Connection at Gusset

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Bolted Connection

About this detail

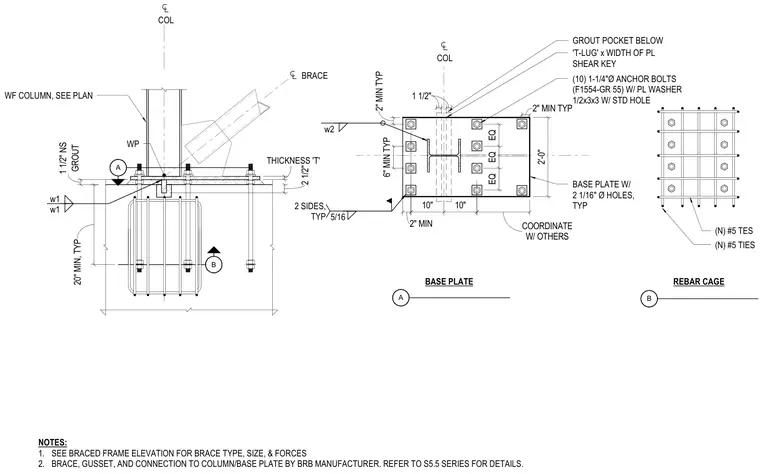

A wide-flange column and braced frame connection anchors to a reinforced concrete foundation. The assembly includes a base plate secured by ten 1-1/4 inch diameter anchor bolts conforming to ASTM F1554 Grade 55 with plate washers and standard holes, set over a 1-1/2 inch non-shrink grout layer. A T-lug shear key projects below the base plate into a grout pocket within the concrete pier, which is reinforced with a cage of number 5 ties. The wide-flange column and intersecting brace meet at a working point above the base plate, with welds specified at five-sixteenth inches typical on two sides. Additional plans and structural elevations govern the specific brace sizing, forces, and overall framing geometry.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
