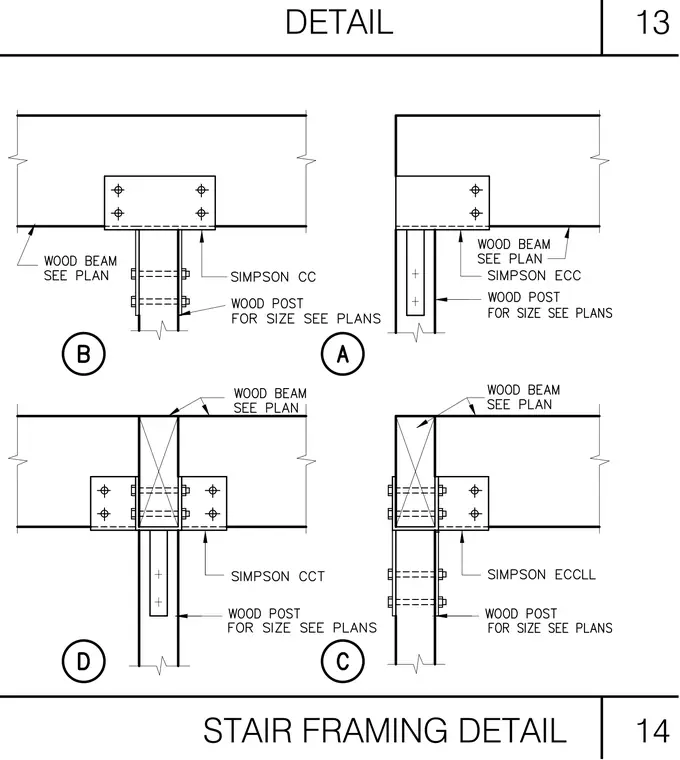

Wood posts connect to wood beams sized per plan using Simpson metal connectors. Configuration A utilizes a Simpson ECC connector, Configuration B utilizes a Simpson CC connector, Configuration C utilizes a Simpson CCT connector, and Configuration D utilizes a Simpson ECCLL connector. Post and beam sizes are determined by the structural plans.
