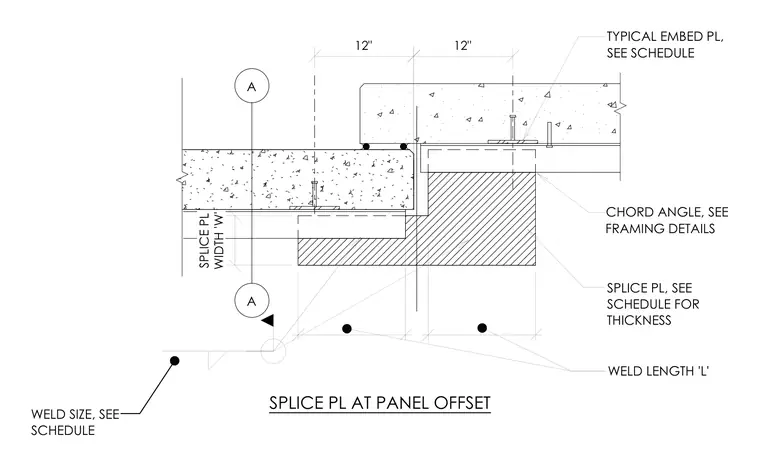

A splice plate connects concrete panels at a stepped offset joint with a twelve-inch dimension spacing. A chord angle provides structural support below the joint, detailed per framing plans. Embed plates with welded studs anchor into the concrete panels. The splice plate thickness, width, weld size, and weld length are determined by schedule.
A A SPLICE PL AT PANEL OFFSET 12" 12" SPLICE PL WIDTH 'W' WELD SIZE, SEE SCHEDULE CHORD ANGLE, SEE FRAMING DETAILS TYPICAL EMBED PL, SEE SCHEDULE SPLICE PL, SEE SCHEDULE FOR THICKNESS WELD LENGTH 'L'
