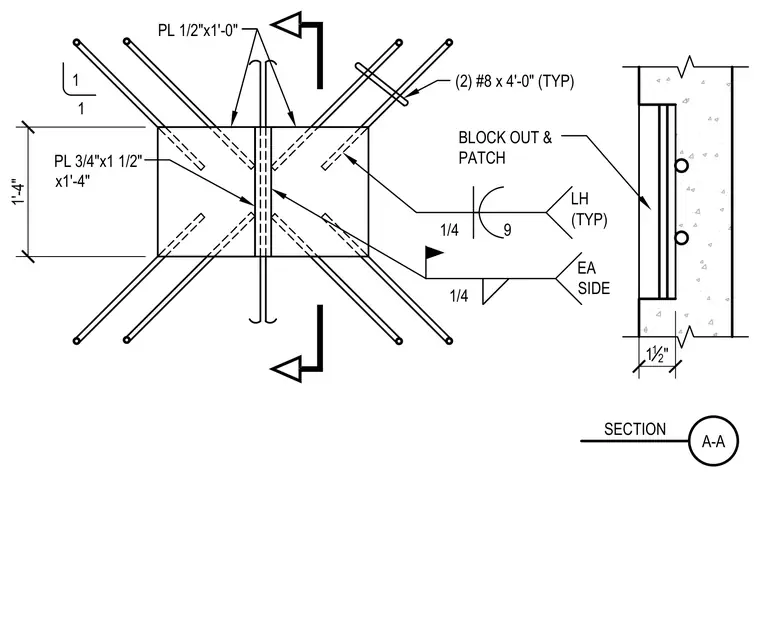

Precast concrete panels are connected using embedded half-inch plates welded together with quarter-inch fillets on each side and reinforced with diagonal number eight bars measuring four feet long. A three-quarter-inch by one-and-a-half-inch by one-foot-four-inch plate is integrated into the joint assembly. Blockouts are provided for placement and subsequently patched. Section A-A indicates a one-and-a-half-inch depth at the blockout location.
1 12 " 1'-4" LH (TYP) EA SIDE 1/4 1/4 9 A-A SECTION 1 1 PL 3/4"x1 1/2" x1'-4" PL 1/2"x1'-0" (2) #8 x 4'-0" (TYP) BLOCK OUT & PATCH
