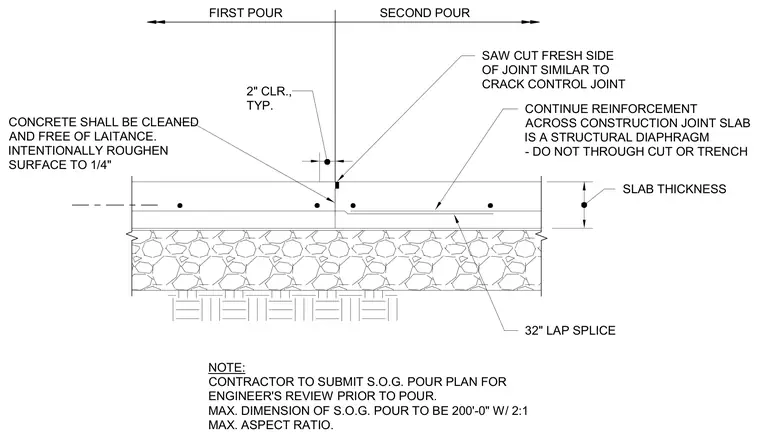

The first pour and second pour concrete slab on grade sections meet at a construction joint with a two-inch typical clearance. The concrete interface is intentionally roughened to one-quarter inch and cleaned free of laitance. Reinforcement continues across the joint since the slab functions as a structural diaphragm, utilizing a thirty-two inch lap splice. A saw cut is made on the fresh side of the joint similar to a crack control joint. The contractor must submit a slab on grade pour plan for engineer review prior to pouring, keeping maximum pour dimensions to two hundred feet with a two-to-one maximum aspect ratio.
CONTINUE REINFORCEMENT ACROSS CONSTRUCTION JOINT SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH SAW CUT FRESH SIDE OF JOINT SIMILAR TO CRACK CONTROL JOINT NOTE: CONTRACTOR TO SUBMIT S.O.G. POUR PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. MAX. DIMENSION OF S.O.G. POUR TO BE 200'-0" W/ 2:1 MAX. ASPECT RATIO. CONCRETE SHALL BE CLEANED AND FREE OF LAITANCE. INTENTIONALLY ROUGHEN SURFACE TO 1/4" 32" LAP SPLICE FIRST POUR SECOND POUR SLAB THICKNESS 2" CLR., TYP.
