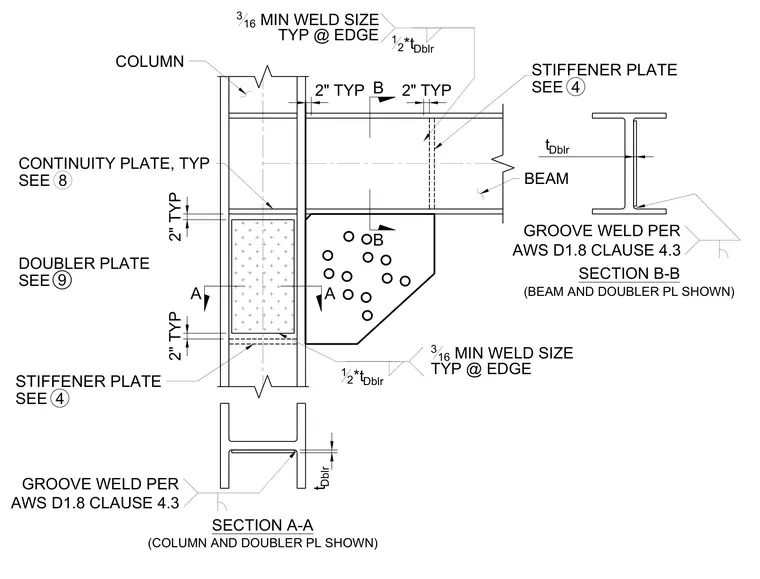

A structural steel beam frames into a column with a gusset plate and a web doubler plate welded to the column web. Continuity plates align with the beam flanges inside the column, and stiffener plates reinforce the beam web. The doubler plate is attached with a three-sixteenths inch minimum weld size typical at edges, alongside groove welds per AWS D1.8 Clause 4.3. Cross sections A-A and B-B detail the placement of the column, beam, and doubler plate configurations.
2" TYP 9 SEE BEAM DOUBLER PLATE TYP @ EDGE 12 *t Dblr 316 MIN WELD SIZE GROOVE WELD PER AWS D1.8 CLAUSE 4.3 t Dblr 2" TYP CONTINUITY PLATE, TYP COLUMN 8 SEE 2" TYP 2" TYP t Dblr B B A A SECTION A-A (COLUMN AND DOUBLER PL SHOWN) SECTION B-B (BEAM AND DOUBLER PL SHOWN) GROOVE WELD PER AWS D1.8 CLAUSE 4.3 12 *t Dblr TYP @ EDGE 316 MIN WELD SIZE STIFFENER PLATE 4 SEE STIFFENER PLATE 4 SEE
