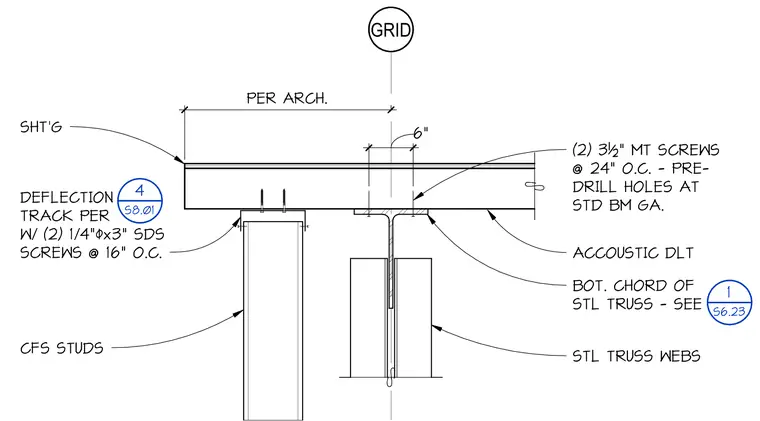

Cold-formed steel studs connect to the bottom chord of a steel truss with a deflection track fastened by two quarter-inch by three-inch self-drilling screws at sixteen inches on center. The truss bottom chord supports acoustic decking and is secured with two three-and-a-half-inch metal screws at twenty-four inches on center with pre-drilled holes at standard beam gauge. The assembly aligns below a grid line per architectural drawings.
GRID PER ARCH. 6" SHT'G ACCOUSTIC DLT BOT. CHORD OF STL TRUSS - SEE STL TRUSS WEBS CFS STUDS DEFLECTION TRACK PER W/ (2) 1/4"%x3" SDS SCREWS @ 16" O.C. (2) 3½" MT SCREWS @ 24" O.C. - PRE- DRILL HOLES AT STD BM GA. 1 S6.23 4 S8.01
