Davit Post Framing and Base Plate Connection

Materials

Steel

Elements

Columns Connections / Plates

Connections

Bolted Connection

About this detail

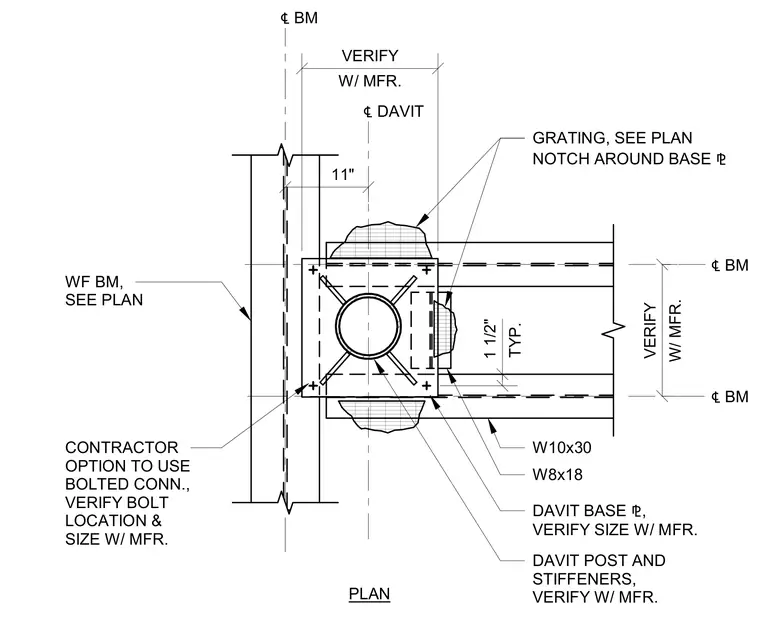

A structural steel davit post and base plate are framed between wide-flange beams sized per plan, including a W8x18 and W10x30 member. The davit base plate features corner stiffeners and connects to the surrounding framing, with a contractor option for a bolted connection whose location and size must be verified with the manufacturer. Metal grating is notched around the base plate as detailed on the plan. Key dimensions include an eleven-inch offset from the beam centerline to the davit centerline, and a one-and-a-half-inch typical dimension.
