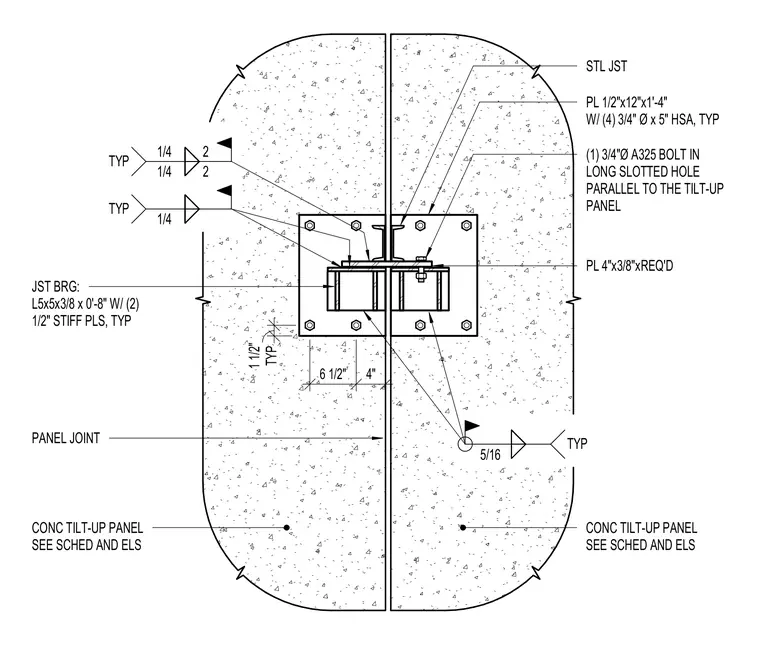

The steel joist bears onto an embedded steel plate measuring 1/2 inch by 12 inches by 1 foot 4 inches, anchored into the concrete tilt-up panel with four 3/4-inch diameter by 5-inch heavy stud anchors. A joist bearing assembly consisting of an L5x5x3/8 angle, 8 inches long with two 1/2-inch stiffener plates, supports the joist. A 4-inch by 3/8-inch plate connects across the panel joint utilizing one 3/4-inch diameter A325 bolt in a long slotted hole parallel to the tilt-up panel to accommodate movement. Fillet welds of 1/4-inch and 5-inch sizes secure the steel components together at the bearing interface.
PANEL JOINT JST BRG: L5x5x3/8 x 0'-8" W/ (2) 1/2" STIFF PLS, TYP STL JST PL 1/2"x12"x1'-4" W/ (4) 3/4" Ø x 5" HSA, TYP PL 4"x3/8"xREQ'D (1) 3/4"Ø A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT-UP PANEL 6 1/2" 4" CONC TILT-UP PANEL SEE SCHED AND ELS CONC TILT-UP PANEL SEE SCHED AND ELS TYP 1 1/2" 1/4 1/4 2 2 TYP 1/4 TYP 5/16 TYP
