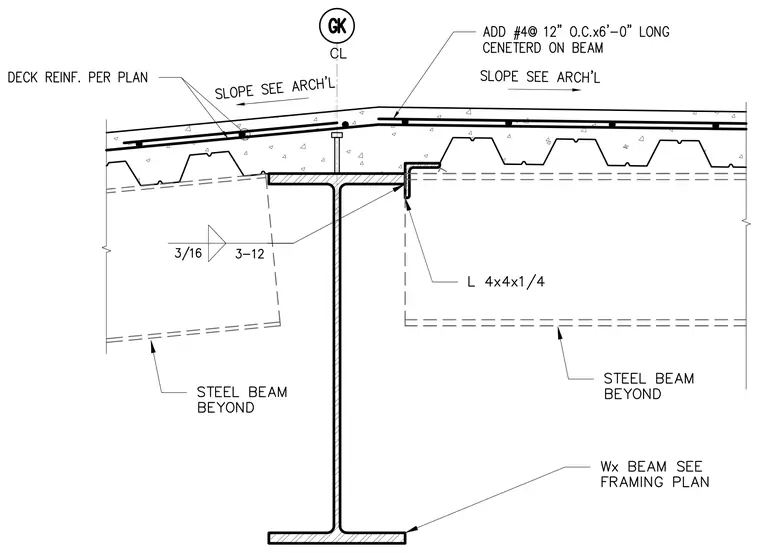

A concrete-filled metal deck bears across a wide-flange steel beam sized per the framing plan, with additional framing beams shown beyond. A 4x4x1/4-inch steel angle is attached to the beam web with a 3/16-inch fillet weld spaced at 12 inches on center. Deck reinforcement is installed per plan, supplemented by number 4 rebar spaced at 12 inches on center and six feet long, centered on the beam centerline. Roof slopes are indicated on either side per architectural drawings.
