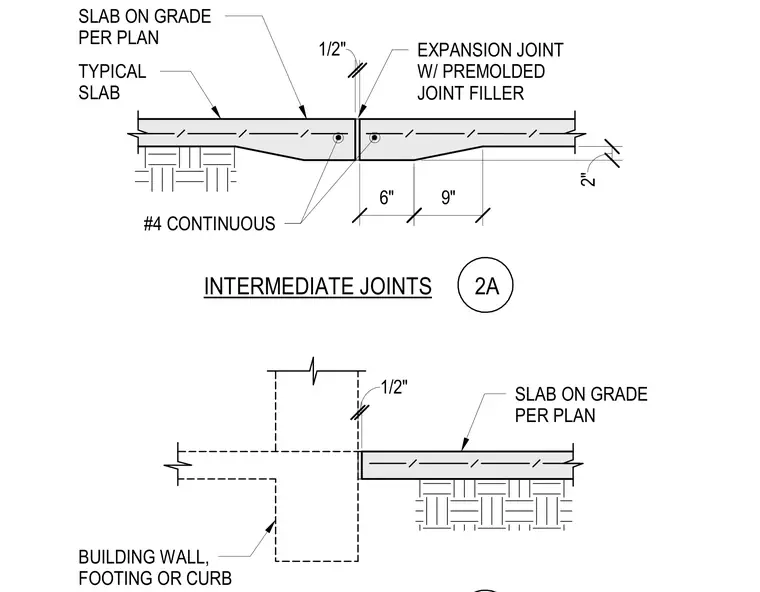

Premolded joint filler separates adjacent slabs-on-grade at an expansion joint, maintaining a half-inch gap over thickened slab edges. Each slab contains a continuous number four reinforcing bar running parallel to the joint. A second detail features the slab-on-grade terminating against a building wall, footing, or curb with a half-inch expansion joint.
INTERMEDIATE JOINTS #4 CONTINUOUS BUILDING WALL, FOOTING OR CURB EXPANSION JOINT W/ PREMOLDED JOINT FILLER TYPICAL SLAB 1/2" 2" 6" 9" 1/2" SLAB ON GRADE PER PLAN SLAB ON GRADE PER PLAN 2A
