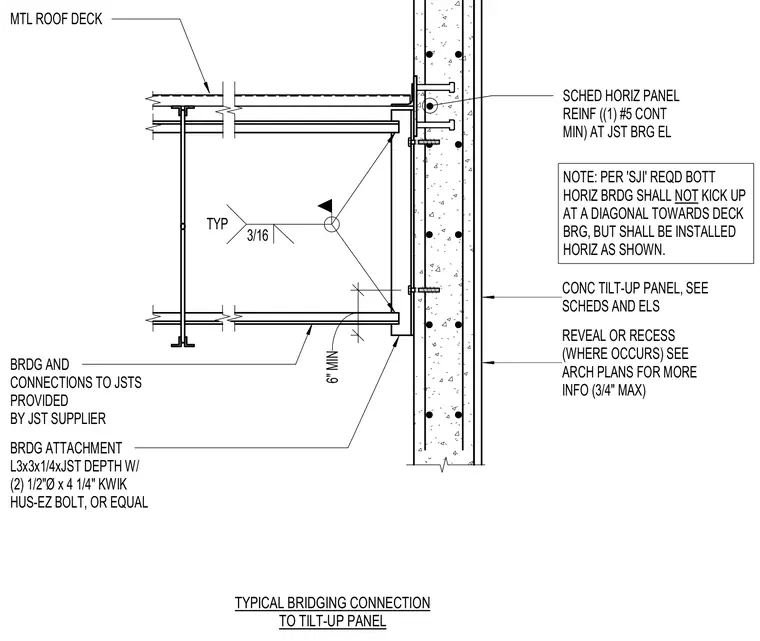

This connection details the interface between a metal roof deck supported by steel joists and a concrete tilt-up wall panel. The bridging attachment consists of an L3x3x1/4 angle matching the joist depth, secured to the tilt-up panel with two 1/2-inch diameter by 4-1/4-inch Kwik Hus-EZ anchors or equal. The joist bridging and its connections are provided by the joist supplier. Horizontal panel reinforcement includes one continuous number 5 bar minimum at the joist bearing elevation. Per Steel Joist Institute requirements, the bottom horizontal bridging must be installed horizontally as shown rather than angled upward toward the deck bearing.
SCHED HORIZ PANEL REINF ((1) #5 CONT MIN) AT JST BRG EL MTL ROOF DECK BRDG AND CONNECTIONS TO JSTS PROVIDED BY JST SUPPLIER BRDG ATTACHMENT L3x3x1/4xJST DEPTH W/ (2) 1/2"Ø x 4 1/4" KWIK HUS-EZ BOLT, OR EQUAL TYP 3/16 NOTE: PER 'SJI' REQD BOTT HORIZ BRDG SHALL NOT KICK UP AT A DIAGONAL TOWARDS DECK BRG, BUT SHALL BE INSTALLED HORIZ AS SHOWN. CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) 6" MIN TYPICAL BRIDGING CONNECTION TO TILT-UP PANEL
