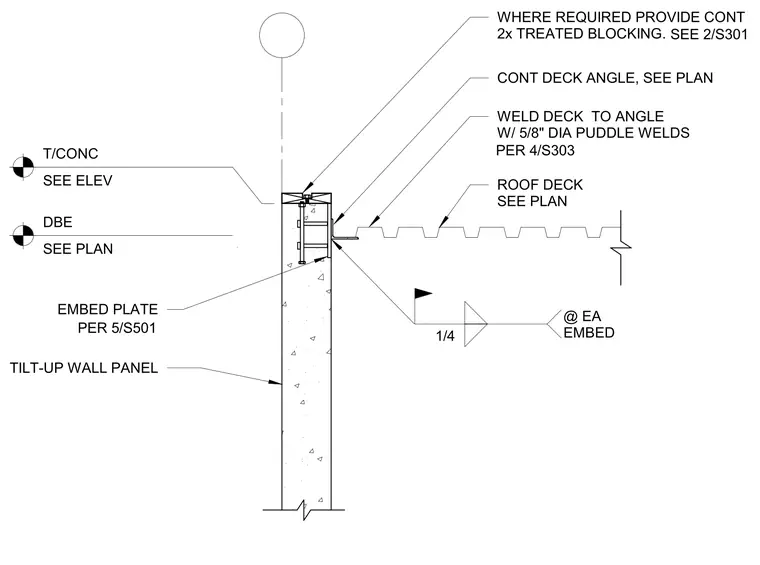

The roof deck is secured to a continuous steel angle, which is welded to an embed plate cast into the top of the concrete tilt-up wall panel. The deck is attached to the angle using five-eighths-inch diameter puddle welds as specified per detail 4/S303. The embed plate is installed per detail 5/S501, with a one-quarter-inch fillet weld applied at each embed location. Where required, continuous two-by treated wood blocking is provided at the top of the wall panel as referenced in detail 2/S301.
Text on the drawing
EMBED PLATE TILT-UP WALL PANEL 1/4 @ EA EMBED ROOF DECK SEE PLAN WELD DECK TO ANGLE W/ 5/8" DIA PUDDLE WELDS CONT DECK ANGLE, SEE PLAN T/CONC SEE ELEV WHERE REQUIRED PROVIDE CONT 2x TREATED BLOCKING. PER 4/S303 SEE 2/S301 DBE SEE PLAN PER 5/S501
