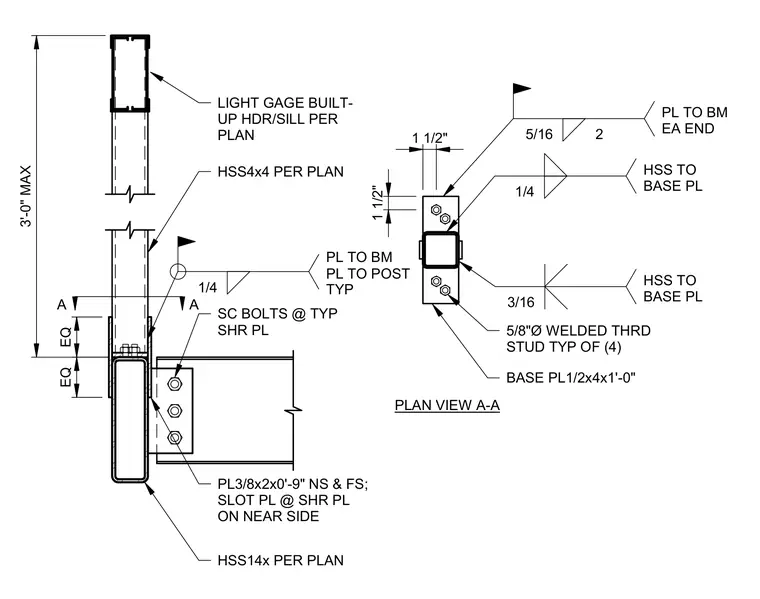

An HSS4x4 hollow structural section post extends upward as a cantilever parapet up to three feet maximum, supported by a lower HSS14x structural member. The base of the post features a half-inch by four-inch by one-foot base plate secured with four five-eighths-inch diameter welded threaded studs and three-sixteenth-inch fillet welds to the HSS. A shear plate connection using three-eighths-inch by two-inch by nine-inch plates with slip-critical bolts ties the framing together, featuring slot plates on the near side and five-sixteenth-inch welds at each end. A light gauge built-up header or sill frames the upper parapet assembly per plan.
HSS14x PER PLAN PL3/8x2x0'-9" NS & FS; SLOT PL @ SHR PL ON NEAR SIDE SC BOLTS @ TYP SHR PL HSS4x4 PER PLAN EQ EQ 3'-0" MAX 1/4 PL TO BM PL TO POST TYP LIGHT GAGE BUILT- UP HDR/SILL PER PLAN A A BASE PL1/2x4x1'-0" 1 1/2" 1 1/2" 5/8"Ø WELDED THRD STUD TYP OF (4) PLAN VIEW A-A 3/16 HSS TO BASE PL 5/16 2 PL TO BM EA END 1/4 HSS TO BASE PL
