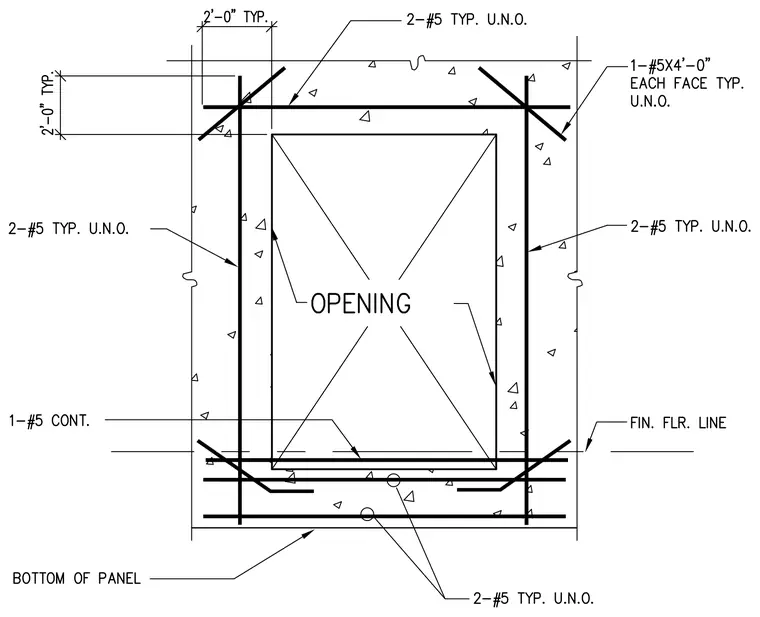

A reinforced concrete wall opening features continuous and diagonal reinforcing bars framing the cutout. Two number five bars extend typically on each side unless noted otherwise, with two number five bars placed diagonally at each corner extending two feet typically past the opening corners. Diagonal corner reinforcement consists of one number five bar four feet long on each face typically unless noted otherwise. A continuous number five bar runs horizontally below the opening near the finished floor line, complemented by bottom panel reinforcement consisting of two number five bars typically unless noted otherwise.
