Structural · S-M5ZRR

Typical Connection at Cantilevered Beams

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Roofs Floors / Slabs Decks Arches Connections / Plates

Connections

Deck Attachment

About this detail

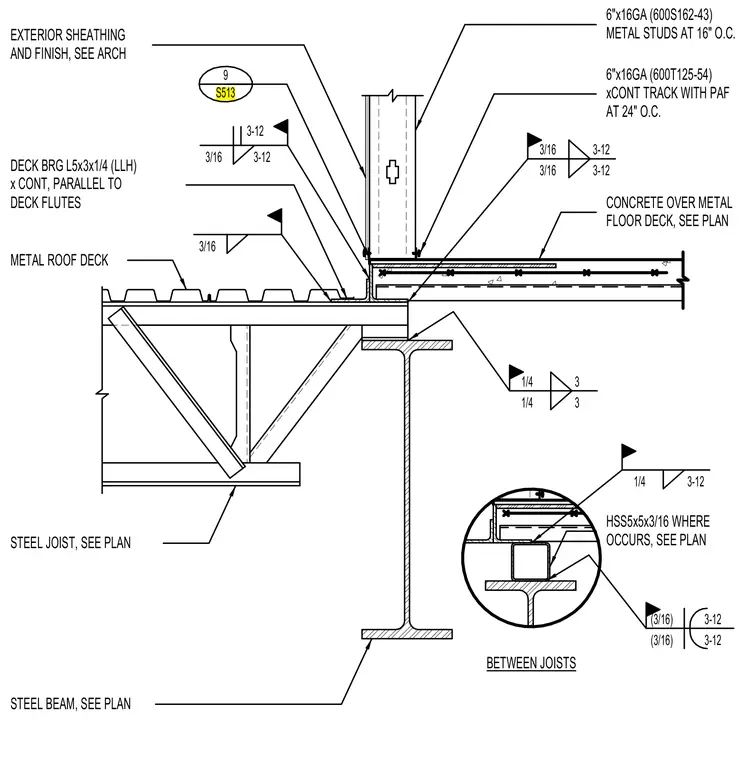

A structural connection detail shows a steel joist bearing on a structural steel beam, with a continuous L5x3x1/4 angle serving as deck bearing parallel to the roof deck flutes. A metal roof deck spans across the steel joists adjacent to a concrete slab over metal floor deck. A hollow structural section member HSS5x5x3/16 is positioned between joists where indicated on plans. Above the floor slab, a cold-formed metal framing wall consists of six-inch 16-gauge studs at 16 inches on center tied to a continuous 16-gauge track anchored with powder-actuated fasteners at 24 inches on center. Exterior sheathing and finish are coordinated per architectural drawings.
