Typical Braced Frame Beam and Gusset Plate Connection

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

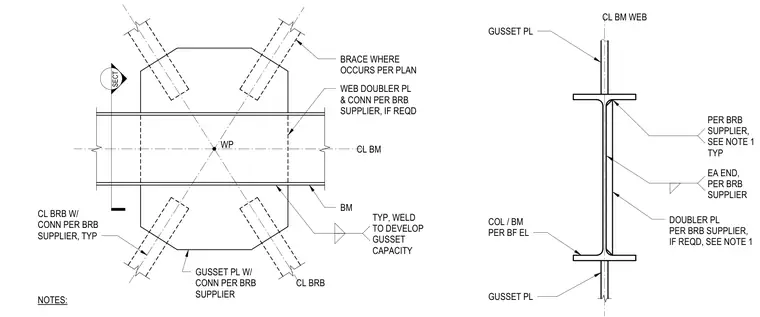

A structural steel beam intersects a braced frame assembly featuring gusset plates and buckling-restrained braces connected per the supplier's engineering specifications. A web doubler plate is provided at the beam web where required, with fillet welds sized to develop the full capacity of the gusset plate. Centerline alignments and work points govern the spatial coordination of the framing members and braces. Additional connections and reinforcement are integrated per the framing elevation and structural notes.
