Lateral bracing for ceiling joists connects to a structural steel beam and deflection track assembly. Existing two-by timber joists are positioned per plan above a Clark Dietrich MaxTrak slotted deflection track with two-and-a-half-inch legs and fifty-four mil thickness. An L2x2x3/16 angle brace is fastened using three-eighths-inch lag screws and is added at forty-eight inches on center. The angle brace ties into a two-by-two-by-three-sixteenths-inch plate welded to the track assembly with one-eighth-inch fillet welds on all weldable sides.

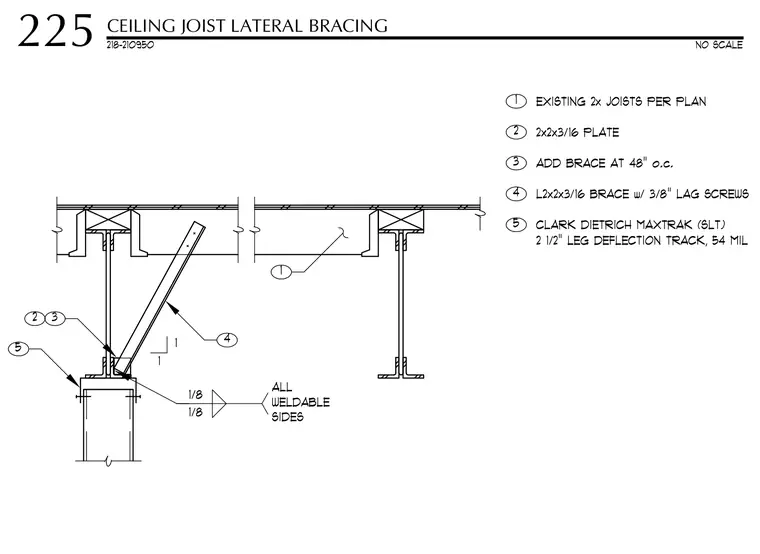

NO SCALE CEILING JOIST LATERAL BRACING 5 2 1/2" LEG DEFLECTION TRACK, 54 MIL CLARK DIETRICH MAXTRAK (SLT) 5 2 1 L2x2x3/16 BRACE w/ 3/8" LAG SCREWS ADD BRACE AT 48" o.c. 4 3 4 1/8 1/8 ALL WELDABLE SIDES 3 2 2x2x3/16 PLATE 1 EXISTING 2x JOISTS PER PLAN 1 1 225 218-210950
