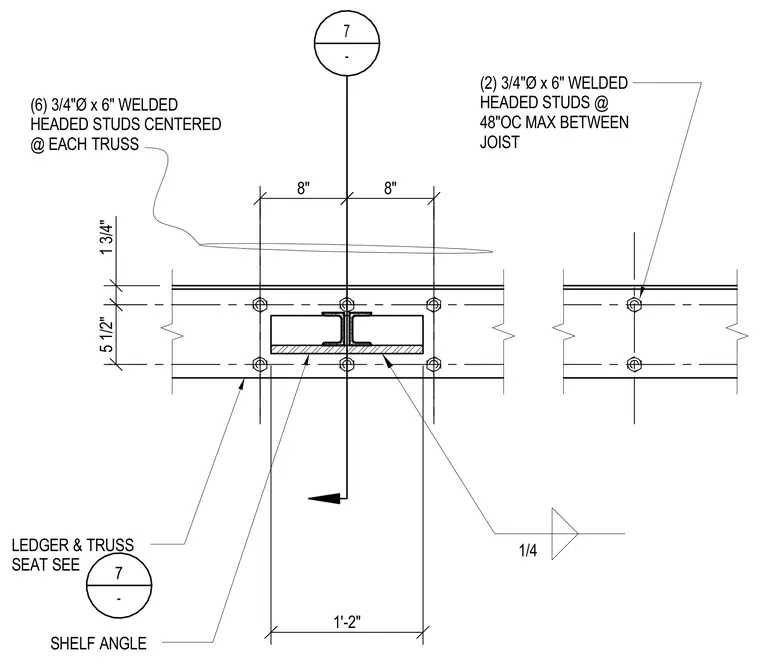

A structural steel shelf angle acts as a ledger and truss seat, supported by welded headed studs. Two 3/4-inch diameter by 6-inch welded headed studs are spaced at 48 inches on center maximum between joists. Six 3/4-inch diameter by 6-inch welded headed studs are centered at each truss location. A 1/4-inch fillet weld secures the assembly.
8" 5 1/2" 1 3/4" 1'-2" 8" LEDGER & TRUSS SEAT SEE 7 - 7 - SHELF ANGLE (2) 3/4"Ø x 6" WELDED HEADED STUDS @ 48"OC MAX BETWEEN JOIST (6) 3/4"Ø x 6" WELDED HEADED STUDS CENTERED @ EACH TRUSS 1/4
