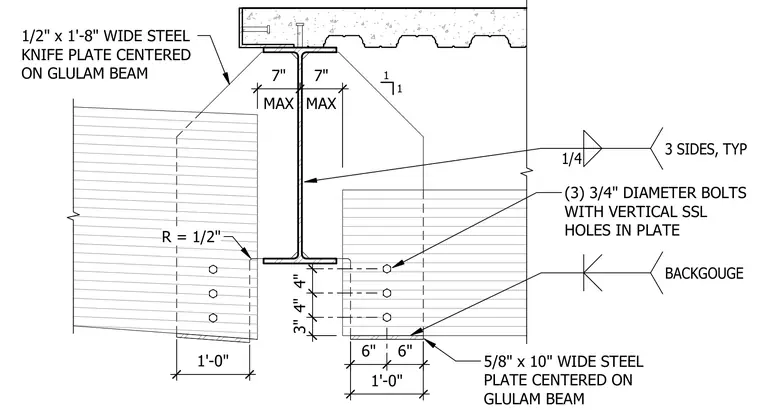

A glulam timber beam frames into a structural steel I-beam via a 1/2" thick by 1'-8" wide steel knife plate centered on the glulam beam and welded to the steel beam web with a 1/4" fillet weld on three sides. Three 3/4" diameter bolts secure the timber to the knife plate through vertical slotted holes in the plate, allowing movement. A 5/8" thick by 10" wide steel plate is centered on the underside of the glulam beam with backgouging at the weld. The steel I-beam supports a composite metal deck concrete slab above.
1/2" x 1'-8" WIDE STEEL KNIFE PLATE CENTERED ON GLULAM BEAM 1'-0" MAX 7" MAX 7" 1'-0" 1 1 5/8" x 10" WIDE STEEL PLATE CENTERED ON GLULAM BEAM BACKGOUGE R = 1/2" 1/4 3 SIDES, TYP (3) 3/4" DIAMETER BOLTS WITH VERTICAL SSL HOLES IN PLATE 3" 4" 4" 6" 6"
