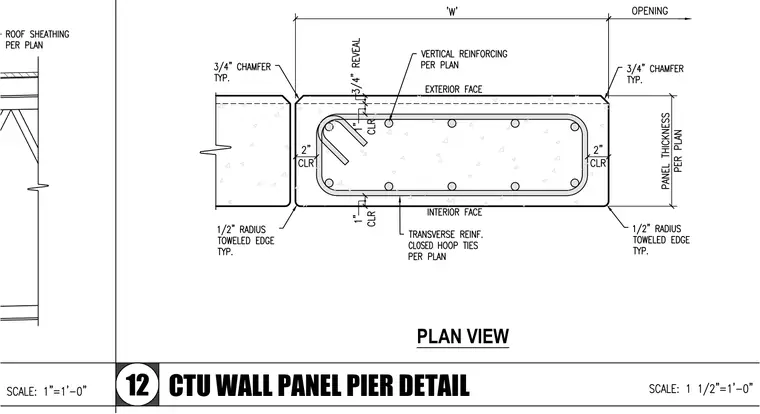

A plan view of a concrete tilt-up wall panel pier with specified panel thickness and opening dimensions features an exterior face with a three-quarter-inch reveal and three-quarter-inch typical chamfers at the corners. The interior face and edges include half-inch radius toweled edges typical. Vertical reinforcing and transverse reinforcing closed hoop ties are sized per plan with two-inch clear cover at the sides and one-inch clear cover at the faces.
