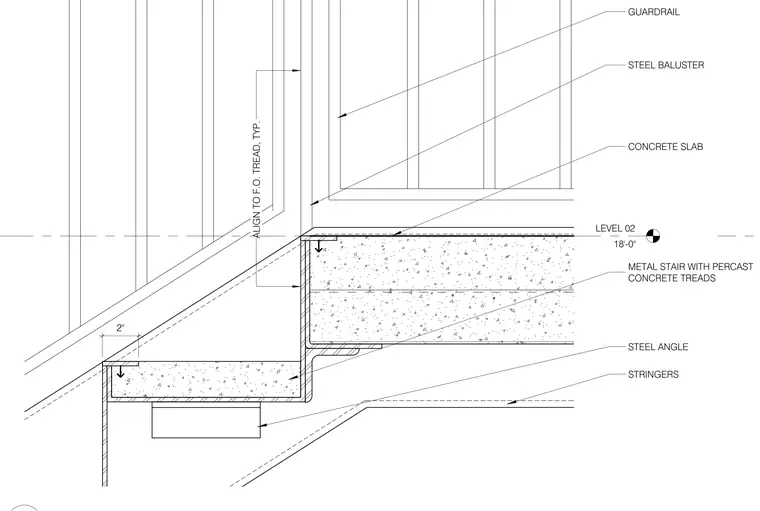

Metal stair with precast concrete treads framing into the concrete slab at Level 02, supported by steel stringers and a steel angle. Steel balusters and a guardrail align to the face of the tread typically. The stair assembly meets the slab edge with a two-inch offset at the landing.
ALIGN TO F.O. TREAD, TYP. LEVEL 02 18'-0" CONCRETE SLAB STEEL BALUSTER GUARDRAIL STEEL ANGLE METAL STAIR WITH PERCAST CONCRETE TREADS 2" STRINGERS
